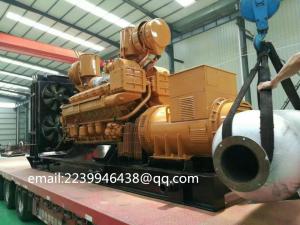

chidong engine and engine parts please send email to 2239946438@qq.com

Product Categories

Shandong Hongfan Power Technology Co.,Ltd

Contact Now

Name: chidong engine and engine parts please send email to 2239946438qqcom
Brand: chidong
Price: 1 USD

Brand Name : chidong

Model Number : L12V190

Certification : CE

Place of Origin : CHINA

MOQ : 1

Price : 1

Delivery Time : 45

Packaging Details : WOODEN CASES

Contact Now

series 3000 long stroke diesel engines
series 3000 long stroke diesel engines
Model	Rated Power(KW/hp)	Rated Speed(r/min)	Specific fuel consumption(g/kw.h)	Specific oil consumption(g/kw.h)	Overall Dimension L＊B＊H(mm)	Net weigh(KG)
L12V190ZL-1	1200/1200	1080/1200	≤202	≤1.0	295019802312	9300
L12V190PZL-1	1200/1200	1080/1200	≤202	≤1.0	398022502850	11000
L12V190ZL-2	1000/1000	900/1000	≤202	≤1.0	295019802312	9300
L12V190PZL-2	1000/1000	900/1000	≤202	≤1.0	398022502850	11000
L12V190ZL-3	1300/1300	1170/1300	≤202	≤1.0	295019802312	9300
L12V190PZL-3	1300/1300	1170/1300	≤202	≤1.0	398022502850	11000
Main technical data
No. and arrangement of cylinders:12,60.Vee
Type:Four stroke,water cooled,turbocharged and aftercooled,direct injection
Bore:190mm
Stroke:255mm
Total displacement:86.72L
Compression ration:14.5:1
Direction of rotation:Counter-clockwise engine without R,clockwise engine with R in the model(facing to flywheel)
Starting method:Air motor or electric motor
Lubricating method:Pressure and splash lubrication
Main specification of diesel coupling sets
Model of coupling sets	Power(KW)/Speed(r/min)	Model of diesel engine	Model of Coupling	Reduction ration	Overall Dimension L＊B＊H(mm)	Centre height(mm )
CO1300F-3/25	1300/1300	L12V190PZL-3	YOTFJ875-25FLsh	2.5	641023352740	1355

EMAIL:2239946438@qq.com

tel/whatsapp:+8618766952912
